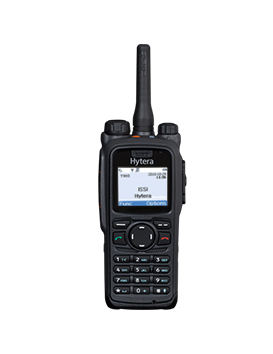

TETRA Portable Terminal

PT580H Plus

Versatile operating modes


In addition to direct mode (DMO) and trunked radio mode (TMO), the PT580H Plus supports operation as ETSI type 1A DMO repeater. If the radio is operated in this new operating mode, the range of application of connected TETRA users increases tremendously.

Excellent audio quality

The PT580H Plus contains an audio chip with optimized noise suppression. Users who need clear communication in noisy environments profit from optimized audio quality and the related enhanced comprehensibility.

Patented antenna

The integrated radio and GPS antenna provides high comfort and even better features. The two knobs on the PT580H Plus are separated by the antenna to prevent operating errors, even when wearing gloves or in poor light conditions.

Dustproof and waterproof


The radio is protected against dust and water in accordance with degree of protection IP67. In addition, it meets the requirements of MIL?-?STD?- 810 C?/?D?/?E?/?F?/?G? standard and passed the HALT?s (Highly Accelerated Life Test). Thus, excellent features are offered even under harsh operating conditions.


Versatile services


Benefiting from the TDMA technology, PD708 doubles the channel capacity based on the same spectrum resource. This is a big help to relieve the stress of increasing shortage in spectrum resource.Apart from voice and data communication, additional functions can be added: GPS, encryption, etc. In addition, the handheld radio features a connection, e.g., for audio and data accessories.


Immediate and direct communication


PT580H Plus provides rapid access to the TETRA radio network and to its services. It was developed according to the regulations of the ETSI TETRA standard and is therefore compatible with infrastructures and terminals from various manufacturers.


Extensive accessories


Besides the standard accessories, extensive additional accessories are available as an option. This includes numerous audio accessories, such as noise protection headsets or wireless headsets.




Frequency Range 380-430MHz
405-475MHz
806-870MHz
RF Power Output 3W (1.8W for 806-870MHz)
Battery 1800mAh (standard)
2500mAh (option)
Battery Life (5/5/90) >20 Hours (1800mAh)
>27 Hours (2500mAh)
Dustproof & Waterproof IP68 Standard
Dimensions(HxWxD) 127.5x55x39.5mm
Weight 368g (with 2000mAh battery and antenna)
400g (with 2500mAh battery and antenna)
