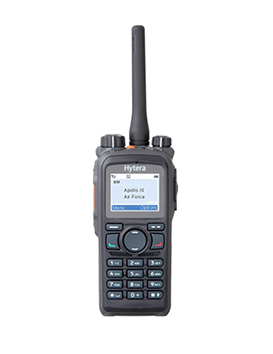

PD788
Ergonomic Design
Durable Battery
Compared with an analog radio, PD788 can obtain an extra 40% operation time.
Higher Spectrum Efficiency, Higher Channel Capacity
Benefiting from the TDMA technology, PD708 doubles the channel capacity based on the same spectrum resource. This is a big help to relieve the stress of increasing shortage in spectrum resource.
Dual-slot Pseudo Trunk
With this feature, the free slot can be allocated to a member that needs to communicate, effectively enhancing frequency efficiency and allowing you to communicate timely under emergency situations.
Secure Communication
Besides the intrinsic encryption of the digital technology, PD788 provides enhanced encryption capability (such as 256-bit encryption algorithm) and the Scrambler feature (optional).
Versatile Services
In addition to conventional communication services, PD708 features rich data services and optional functions such as Text Message, Scan, Emergency, Man Down (optional), vibration, Auto Registration, High-speed Data Transmission and Lone Worker.
Further Development Port
The reserved side port in PD788 allows users or any third party partner to further develop other helpful applications to extend the radio functionalities!
Option Board Interface
PD788 supports option board interfaces to radio, allowing third party partner to develop various applications to interconnect with radios to control the radio to expand its functionalities! Among the supported features are voice recording, encryption etc. Please refer to the API Partner Programmed for more information!
Dual Modes (Analog+Digital)
PD788 can operate in either analog or digital mode. It is compatible with the prevalent analog system, ensuring a smooth analog-to-digital migration.
Privacy of Voice and Data
|
General
|
||
|
Frequences
|
UHF1: 400-470MHz
UHF2: 450-520MHz
UHF3: 350-400MHz
UHF5: 806-941MHz*
VHF: 136-174MHz
|
|
|
Channel Capacity
|
1024
|
|
|
Zone Capacity
|
64 |
|
|
Channel Spacing
|
12.5KHz/20KHz/25KHz
|
|
|
Operating Voltage
|
7.4V (rated)
|
|
|
Battery
|
2000mAh (Li-Ion)
|
|
|
Battery Life
(5-5-90 Duty Cycle, High TX Power)
High-capacity 2000mAh Li-Ion Battery
|
Analog:
UHF1: 13.5h 12h (G)
UHF2: 12.5h 11h (G)
UHF3: 12.5h 11h (G)
UHF5* : 9.5h 8.5h(G)
VHF: 11h 10h (G)
Digital:
UHF1: 15.5h 14h (G)
UHF2: 14.5h 12.5h (G)
UHF3: 14.5h 12.5h (G)
UHF5* : 12h 11h(G)
VHF: 13.5h 12h (G)
|
|
|
Frequency Stability
|
±1.5ppm
|
|
|
Antenna Impedance
|
50Ω
|
|
|
Dimensions (H×W×D)
(with standard battery, without antenna)
|
125 X 55 X 37mm
|
|
|
Weight (with antenna & standard battery)
|
355g
|
|
|
LCD Display
|
160×128 pixels, 65536 colors 1.8 inch, 4 rows
|
|
|
Transmitter
|
||
|
RF Power Output
|
UHF1/UHF2/UHF3 High Power: 4W
UHF1/UHF2/UHF3 Low Power :1W
UHF5* High Power: 3W (806-870MHz), 2.5W (896-941MHz); U5* Low Power: 1W
VHF High Power: 5W; VHF Low Power: 1W
|
|
|
FM Modulation
|
11K0F3E @ 12.5KHz
14K0F3E @ 20KHz
16K0F3E @ 25KHz
|
|
|
4FSK Digital Modulation
|
12.5KHz Data Only: 7K60FXD
12.5KHz Data & Voice: 7K60FXW
|
|
|
Conducted/Radiated Emission
|
-36dBm<1GHz
-30dBm>1GHz
|
|
|
Modulation Limiting
|
±2.5KHz @ 12.5KHz
±4.0KHz @ 20KHz
±5.0KHz @ 25KHz
|
|
|
FM Hum & Noise
|
40dB @ 12.5KHz
43dB @ 20KHz
45dB @ 25KHz
|
|
|
Adjacent Channel Power
|
60dB @ 12.5KHz
70dB @ 20/25KHz
|
|
|
Audio Response
|
+1 ~ -3dB
|
|
|
Audio Distortion
|
≤3%
|
|
|
Digital Vocoder Type
|
AMBE++ or SELP
|
|
|
Digital Protocol
|
ETSI-TS102 361-1, -2,-3
|
|
|
Receiver
|
||
|
Sensitivity
|
Analog
|
0.3μV (12dB SINAD)
0.22μV (Typical) (12dB SINAD)
0.4μV (20dB SINAD)
|
|
Digital
|
0.3μV /BER5%
|
|
|
Selectivity
TIA-603
ETSI
|
60dB @ 12.5KHz/70dB @ 20&25KHz
60dB @ 12.5KHz/70dB @ 20&25KHz
|
|
|
Intermodulation
TIA-603
ETSI
|
70dB @ 12.5/20/25KHz
65dB @ 12.5/20/25KHz
|
|
|
Spurious Response Rejection
TIA-603
ETSI
|
70dB @ 12.5/20/25KHz
70dB @ 12.5/20/25KHz
|
|
|
Blocking
TIA-603
ETSI
|
80dB
84dB
|
|
|
Hum and Noise
|
40dB @ 12.5KHz
43dB @ 20KHz
45dB @ 25KHz
|
|
|
Rated Audio Power Output
|
0.5W
|
|
|
Rated Audio Distortion
|
≤3%
|
|
|
Audio Response
|
+1 ~ -3dB
|
|
|
Conducted Spurious Emission
|
< -57dBm
|
|
|
Environmental Specifications
|
||
|
ESD
|
IEC 61000-4-2（level 4）
±8kV (contact)
±15kV (air)
|
|
|
American Military Standard
|
MIL-STD-810 C/D/E/F/G
|
|
|
Dust & Water Intrusion
|
IP67 Rating
|
|
|
Humidity
|
Per MIL-STD-810 C/D/E/F Standard
|
|
|
Shock & Vibration
|
Per MIL-STD-810 C/D/E/F Standard
|
|
|
GPS (for PD78XG only)
|
||
|
Accuracy specs are for long-term tracking(95th percentile values>5 satellites visible at a nominal -130dBm signal strength)
|
||
|
TTFF (Time To First Fix) Cold Start
|
<1 minute
|
|
|
TTFF (Time To First Fix) Hot Start
|
<10 seconds
|
|
|
Horizontal Accuracy
|
<10 meters
|
|
