Analog Radio

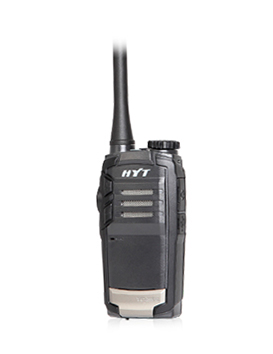

TC320

Technical Highlights

-Wide Communication Range

2W output power can realize wide communication range.

-Delicate, Compact and Durable Body

Strong enough to withstand 1.5m drop with delicate and compact body design.

-Long Battery Life

The 1700mAh high capacity Li-ion battery can secure a battery life up to 10 hours.

-Fashionable Design and Compact Appearance

With ergonomic design, this slim and compact product can help users relieve themselves of fatigue from long-time operation.

-Double Injection Molding and Anti-skid Design

The combination of double injection molding and anti-skid technology brings users comfortable and convenient operation experience.

-Chargeable and Programmable through Mini USB Interface

You can directly charge or program TC-320 through its new added Mini USB interface.

Main Features

-Audio Compandor

-Scrambler

-VOX Earpiece

-Battery Strength Indicator

-High/Low Power Switchable

-Programmable 25 KHz /12.5 KHz Channel Spacing

-Monitor

-CTCSS/CDCSS and Squelch Tail Elimination

-Channel Scan

-Auto Battery Save

-Low Battery Alert

-Busy Channel Lockout(BCL)

-Time-out-timer (TOT)

-PC Programmable

-Wired Clone

Applications

Hotels and chained super markets: TC-320 is designed for low-tier markets, cost effective and easy-to-use.

General
Frequency Range	409.750-409.9875MHz
Channel Capacity	16
Channel Spacing	25/12.5KHz
Operating Voltage	3.8V
Standard Battery	1700mAh (Li-Ion)
Battery Life	More than 10 hrs
Frequency Stability	±2.5 ppm
Antenna Impedance	50Ω
Dimensions (H×W×D) (with standard battery, without antenna)	100x48x27mm
Weight (with antenna & standard battery)	135g
Transmitter
RF Output Power	2W/0.5W
Modulation	16K0F3E/8K0F3E
Spurious and Harmonics	≤-40dBm
FM Noise	≤ -38dB/34dB
Audio Distortion	≤ 5%
Receiver
Sensitivity	≤0.25/0.28μV
Selectivity	60/55dB
Intermodulation	55dB
S/N	≥40/34dB
Rated Audio Power Output	400mW
Rated Audio Distortion	≤5%

Brochure

TC320 Brochure

update: 2022-07-21
