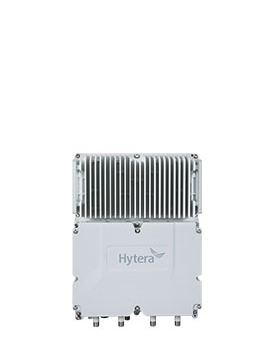

Hytera DMR Trunking Cube Base Station
DS-6250
Flexible Deployment
The Hytera Trunking Cube Base Station features fast deployment.Four installation options are available to match your communication scenarios:wall-mounted for indoor coverage,pole-mounted for outdoor coverage,vehicle-mounted for emergency situations,and box-mounted for temporary operation.
Save time and cost in installation and associated space required,unleashing the potential of Tier III trunking in any environment.
All in One
Based on multicarrier technology,the Hytera Trunking Cube Base Station is highly integrated and is able to be powered on to work upon arrival,saving you time and money on installation and deployment.
Large Coverage
The Trunking Cube Base Station can provide excellent coverage.It supports diversity receiving and can be directly receiving and can be directly mounted on antenna masts,buildings and towers,reducing feeder loss.
High Spectrum Efficiency
Based on multicarrier technology,channel spacing is more than 50KHz insteaed of the traditional 250KHz plus.What's more,it can work in DMR trunking simulcast mode,which means all base stations implemented in a single network can adopt the same frequencies.
The highly integrated componnets ensure power consumption is less than 550W,supported with the eye-catching blade heat sink design to guarantee good heat dissipation.
| General | ||
| Protocol | DMR Tier 3 | |
| Frequency | 350-370MHz;400-470MHz(Customized) | |
| Carrier Capacity | 1-8 | |
| Transmission | Dual optical fiber port | |
| Time Synchronization | GPS/Beidou/IEEE 1588 V2 | |
| Carrier Spacing | ≥50kHz | |
| Duplex Spacing | 10 MHz | |
| Power Supply | DC 48V/AC220V with external adapter | |
| Power Consumption | ≤550W | |
| Operating Temperature | -40℃to+55℃ | |
| Storage Temperature | -40℃ to+85℃ | |
| Operating Humidity | 5%RH to 100%RH | |
| Atmospheric Pressure | 70kPa to 106kPa | |
| Protection Class | IP67 | |
| Wind Resistant | 240Km/h | |
| Lightning Protection | Power supply port:20KA | |
| Weight | ＜26Kg | |
| Dimensions | 435*340*157.5mm³ | |
| MTBF | ≥100,000h | |
en_DS-6250 Brochure update: 2017-12-27 |
