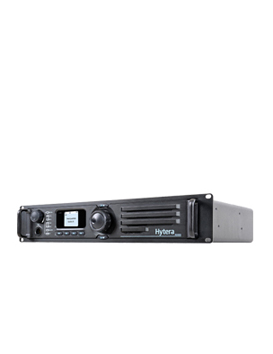

RD988 (Super version)
RD988S is a 50W, DMR and analog dual mode upgradable repeater which can work in analog and DMR conventional modes. It can be upgraded to trunking or simulcast mode by software only. One step upgrade package makes it easy to operate in different modes, analog conventional, MPT-1327, DMR conventional, DMR trunking and DMR simulcast with only one hardware platform.
Repeater Diagnostic And Control (RDAC)
IP Multi-site Connect
RD988S supports network interconnect via the IP port of repeater to form a private radio network, allowing wide area coverage to meet dispersed locations data and voice communications.
Analog/Digital Telephone Interconnect (via DTMF signaling)
RD988S supports simplex voice communications between radio and telephone users. It allows a radio user to make a telephone call; or a telephone user to make either a Group or Private call to radio users.
Analog Scan
RD988S supports Analog voice and signaling scan, allowing repeating of different Analog voice users from various groups.
Multi CTCSS/CDCSS Decode
RD988S supports decoding up to 16 CDCSS/ CTCSS types on analog channels, allowing repeating of different analog voice users from various groups.
Upgrade to DMR Trunking Transceiver
DMR trunking Lite 2 carrier BS, including Power Distribution Unit, 2 Transceivers (RD988S) & Transceiver Power Supply, Switch, BS PSU, Base Station Controller, 2-channel RF System.
▪Open Standard
DMR Trunking Lite is based on DMR tier III standard, defined by ETSI in 2005, which is a digital radio standard for professional radio users. With dedicated control channel, DMR Trunking Lite can achieve versatile functions.
▪Smooth Migration
DMR Trunking Lite transceiver supports smooth migration from analog to digital, from conventional to trunking. Multi-modes provide you different choices for continual investment.
▪Integrated RF System
Intergrated 2-carrier RF system, significantly reduces the space and cost for divider, combiner and duplexer.
▪Non-centralilzed Structure Design
Non-centralized structure is only used for less than 5 base stations. It ensures a cost-effective and flexible networking especially suitable for small-scale network.
Upgrade to DMR Simulcast Transceiver
DMR Simulcast Single Carrier BS, including Built-in Router, Synchronized Expansion Unit, Transceiver (RD988S) & Power Unit & Duplexer.
▪Smooth Roaming and Handover
In simulcast system, the radio is capable of roaming and handover seamlessly between different BSs , the ongoing communication can continue normally during handover.
▪Dynamic Voting
Simulcast system can provide good voice performance in overlap area as radios in overlap area can always receive the best voice frame through dynamic voting. As a voting center, MSO is used to analyze each voice frame received from Base Stations in real time. The best voice frame will be extracted and sent to radios.
▪Analog/Digital Adaptive
Simulcast base station channels support working in both analog and digital modes, to ensure smooth migration from analog to digital network. Digital or analog mode is automatically selected based on the incoming signals.
▪Smart Subnetting and Patching
According to management requirements, DMR simulcast system can be divided into different subnets by Base Station or by time slot of channel unit in each Base Station. Each subnet can work as an independent simulcast system. Different subnets can be patched to make a larger subnet temporarily according to the requirements.
Flexible application via software or hardware upgrade:
▪Digital conventional repeater
▪DMR trunking transceiver
▪DMR trunking transceiver
▪Analog conventional repeater
▪Analog simulcast transceiver
▪MPT trunking transceiver
|
General
|
|||
|
Frequency
|
UHF1: 400-470MHz
UHF2: 450-520MHz
UHF3: 350-400MHz
VHF: 136-174MHz
|
||
|
Channel Capacity
|
16
|
||
|
Channel Spacing
|
12.5kHz/20kHz/25kHz
|
||
|
Operating Voltage
|
13.6V±15%
|
||
|
Current Drain
|
Standby
|
<0.8A
|
|
|
Transmit
|
<11A
|
||
|
Frequency Stability
|
±0.5ppm
|
||
|
Antenna Impedance
|
50Ω
|
||
|
Duty Cycle
|
100%
|
||
|
Dimensions (H×W×D)
|
88 X 483 X 366 mm
|
||
|
Weight
|
8.5 kg
|
||
|
LCD Display
|
220*176 pixels, 262000 colors
2.0 inch, 4 rows
|
||
|
Transmitter
|
|||
|
RF Power Output
|
5-50W
|
||
|
FM Modulation
|
11K0F3E @ 12.5kHz
14K0F3E @ 20kHz
16K0F3E @ 25kHz
|
||
|
4FSK Digital Modulation
|
12.5kHz Data Only: 7K60FXD
12.5kHz Data & Voice: 7K60FXW
|
||
|
Conducted/Radiated Emission
|
-36dBm <1GHz
-30dBm >1GHz
|
||
|
Modulation Limiting
|
±2.5 kHz @ 12.5 kHz
±4.0 kHz @ 20 kHz
±5.0 kHz @ 25 kHz
|
||
|
FM Hum & Noise
|
40dB @ 12.5 kHz
43dB @ 20 kHz
45dB @ 25 kHz
|
||
|
Adjacent Channel Power
|
60dB@12.5kHz
70dB@20/25kHz
|
||
|
Audio Response
|
+1 ~ -3dB
|
||
|
Audio Distortion
|
≤3%
|
||
|
Digital Vocoder Type
|
AMBE++ or SELP
|
||
|
Digital Protocol
|
ETSI-TS102 361-1,-2,-3
|
||
|
Receiver
|
|||
|
Sensitivity
|
Analog
|
0.3μV (12dB SINAD)
0.22μV (Typical) (12dB SINAD)
0.4μV (20dB SINAD)
|
|
|
Digital
|
0.25uV/BER5%
|
||
|
Adjacent Channel Selectivity
TIA-603
ETSI
|
65dB @ 12.5 kHz ；75dB @ 20/25 kHz
65dB @ 12.5 kHz ；75dB @ 20/25 kHz
|
||
|
Intermodulation
TIA-603
ETSI
|
75dB @ 12.5/20/25 kHz
70dB @ 12.5/20/25 kHz
|
||
|
Spurious Response Rejection TIA-603
ETSI
|
80dB @ 12.5/20/25 kHz
80dB @ 12.5/20/25 kHz
|
||
|
Blocking
TIA-603
ETSI
|
90dB
90dB
|
||
|
Hum and Noise
|
40dB @ 12.5kHz
43dB @ 20kHz
45dB @ 25kHz
|
||
|
Rated Audio Power Output
|
0.5W
|
||
|
Rated Audio Distortion
|
≤3%
|
||
|
Audio Response
|
+1 ~ -3dB
|
||
|
Conducted Spurious Emission
|
<-57dBm
|
||
All specifications are subject to change without notice due to continuous development.
