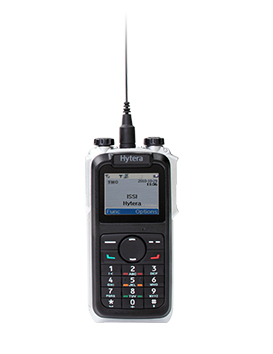

X1p
Advanced encryption
GPS positioning
The built-in GPS module supports GIS applications.
Dual modes (analog & digital)
Dual modes (analog & digital) operation ensures a smooth analog-to-digital migration.
Versatile voice calls
Versatile voice calls include individual call, group call and all-call.
Vibration
Vibration alerts the reception of voice call and message.
Rich signaling
Support multiple advanced analog signaling, including HDC1200, DTMF, 2-Tone and 5-Tone, providing more expansion capacity.
Software up-gradable
Up-gradable software enables new features without buying a new radio.
Work with Hytera smart dispatch system and Portable repeater to achieve flexible networking & dispatching
For mission critical users like special police, anti-drug/anti-smuggling officer, senior guard, senior executives, etc., only a professional terminal is not enough to accomplish tasks and ensure safety. This is where a complete communications solution is demanded.
Work with Hytera dispatch system and Portable repeater to achieve flexible networking & dispatching
For mission critical users like special police, anti-drug/anti-smuggling officer, senior guard, senior executives, etc., only a professional terminal is not enough to accomplish tasks and ensure safety. This is where a complete communications solution is demanded.
|
General
|
||
|
Frequency Range
|
UHF1: 400-470MHz; UHF2:450-520MHz; UHF3: 350-400MHz; UHF5: 806-941MHz*; VHF: 136-174MHz
|
|
|
Channel Capacity
|
1024
|
|
|
Channel Spacing
|
25/20/12.5KHz
|
|
|
Operating Voltage
|
7.4V (rated)
|
|
|
Battery
(5-5-90 Duty Cycle, High TX Power)
|
1100mAh Li-ion battery/1400mAh Li-ion battery/1800mAh Li-ion battery
|
|
|
Battery Life
(5-5-90 Duty Cycle, High TX Power)
High-capacity 2000mAh Li-Ion Battery
|
Digital: about 10 Hours (1100mAh Li-ion battery)
Digital: about 12 Hours (1400mAh Li-ion battery) Digital: about 15 Hours (1800mAh Li-ion battery) |
|
|
Frequency Stability
|
±1.5ppm
|
|
|
Antenna Impedance
|
50Ω
|
|
|
Dimensions (H×W×D)
(with standard battery, without antenna)）
|
119.5 X 57 X 21mm (1100mAh Li-ion battery)
119.5 X 57 X 23mm (1400mAh Li-ion battery) 119.5 X 57 X 26mm (1800mAh Li-ion battery) |
|
|
Weight (with antenna & standard battery)
|
about 240g (1100mAh Li-ion battery)
about 260g (1400mAh Li-ion battery) about 280g (1800mAh Li-ion battery) |
|
| LCD Display | 160 x 128 pixels, 65536 colors 1.8 inch, 4 rows | |
|
Transmitter
|
||
|
RF Power Output
|
VHF High Power: 5W
VHF Low Power: 1W UHF1/UHF2/UHF3 High Power: 4W, UHF1/UHF2/UHF3/UH5 Low Power: 1W UHF5 High Power: 3W (806-870MHz), 2.5W |
|
|
FM Modulation
|
11K0F3E @ 12.5KHz
14K0F3E @ 20KHz
16K0F3E @ 25KHz
|
|
|
4FSK Digital Modulation
|
12.5kHz Data Only: 7K60FXD
12.5kHz Data & Voice: 7K60FXW
|
|
|
Conducted/Radiated Emission
|
-36dBm<1GHz
-30dBm>1GHz
|
|
|
Modulation Limiting
|
±2.5KHz @ 12.5KHz
±4.0KHz @ 20KHz
±5.0KHz @ 25KHz
|
|
|
FM Noise
|
40dB @ 12.5KHz
43dB @ 20KHz
45dB @ 25KHz
|
|
|
Adjacent Channel Power
|
60dB @ 12.5KHz; 70dB @ 20/25KHz
|
|
|
Audio Response
|
+1 ~ -3dB
|
|
|
Audio Distortion
|
≤3%
|
|
|
Digital Vocoder Type
|
AMBE++ or SELP
|
|
|
Digital Protocol
|
ETSI-TS102 361-1, 2&3
|
|
|
Receiver
|
||
|
Sensitivity
|
Analog
|
0.3μV (12dB SINAD)
0.22μV (Typical) (12dB SINAD)
0.4μV (20dB SINAD)
|
|
Digital
|
0.3μV /BER5%
|
|
|
Selectivity
TIA-603
ETSI
|
60dB @ 12.5KHz / 70dB @ 20&25KHz
60dB @ 12.5KHz / 70dB @ 20&25KHz
|
|
|
Intermodulation
TIA-603
ETSI
|
70dB @ 12.5/20/25KHz
65dB @ 12.5/20/25KHz
|
|
|
Spurious Response Rejection
TIA-603
ETSI
|
70dB @ 12.5/20/25KHz
70dB @ 12.5/20/25KHz
|
|
|
S/N
|
40dB @ 12.5KHz
43dB @ 20KHz
45dB @ 25KHz
|
|
|
Rated Audio Power Output
|
0.5W
|
|
|
Rated Audio Distortion
|
≤3%
|
|
|
Audio Response
|
+1 ~ -3dB
|
|
|
Conducted Spurious Emission
|
< -57dBm
|
|
|
Environmental Specifications
|
||
|
ESD
|
IEC 61000-4-2 (level 4)
±8kV (contact)
±15kV (air)
|
|
|
American Military Standard
|
MIL-STD-810 C/D/E/F/G
|
|
|
Dust & Water Intrusion
|
IP67 Rating
|
|
|
Humidity
|
Per MIL-STD-810 C/D/E/F/G Standard
|
|
|
Shock & Vibration
|
Per MIL-STD-810 C/D/E/F/G Standard
|
|
|
GPS
|
||
|
TTFF (Time To First Fix) Cold Start
|
<1 minute
|
|
|
TTFF (Time To First Fix) Hot Start
|
<10 seconds
|
|
|
Horizontal Accuracy
|
<10 meters
|
|
