Hytera Patrol Solution

The Hytera Patrol System is a simple, user-friendly, cost-efficient solution for the management of security personnel and assets. Utilising RFID tags and the reliable PD415 DMR radio as your reader, you can monitor personnel and assets at all times, increasing safety, security and patrol efficiency. The RFID tags are made up of a patrol identification card (POA72) and a checkpoint (POA71). The checkpoints are installed in the location that needs to be safeguarded, along the intended patrol route.The Hytera Patrol System is a simple, user-friendly, cost-efficient solution for the management of security personnel and assets. Utilising RFID tags and the reliable PD418 DMR radio as your reader, you can monitor personnel and assets at all times, increasing safety, security and patrol efficiency. The RFID tags are made up of a patrol identification card (POA72) and a checkpoint (POA71). The checkpoints are installed in the location that needs to be safeguarded, along the intended patrol route.

As the user starts their shift, they register their PD418 with their patrol identification card, logging them on to the patrol system. As the user passes a checkpoint along their patrol route, the radio is held against the checkpoint. This scans the location using the RFID technology. The data acquired is transmitted from the radio to the patrol software where all logs can be subsequently analysed.Speak to a Hytera Partner today to find out how the Hytera Patrol system could improve your security process.

Proven DMR radio technology and RFID

The radio technology employed for the data transfer to the call center is based on

the open ETSI standard DMR. The data of the patrol are collected using passive

RFID-capable checkpoints and the DMR handheld mobile radio PD418.

Flexible usage

A repeater as well as a mobile radio (MD788/MD788G) can be used as receiving station.

In case of a repeater, the patrol system is connected via IP, which allows it to be

placed at a remote location. In case of the MD788/MD788G, this is accomplished with

the standard programming cable.

Reliable data transfer

If data cannot be transferred to the call center due to a lack of DMR radio coverage,

the PD418 radio offers functions that allow transferring these data at a later time. As

soon as the radio is connected again with the DMR system, the data of the patrol

can be sent again with the push of a button. As an alternative, the offline data transfer

via cable is also possible.

Type	Model	Brief Description

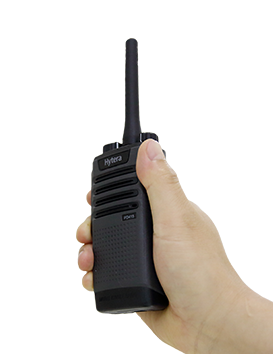

Radio	PD418	The PD415 DMR handheld radio gives you conventional DMR radio and an integrated RFID reader. -Frequency range VHF: 136 - 174 MHz / UHF: 400 - 470 MHz -Degree of protection IP54 and MIL-STD-810 C/D/E/F/G -Stores up to 250 offline data records
Accessories	POA72 patrol identification card	The patrol identification card is a passive RFID tag with which the patrol person registers at the radio.
Accessories	POA71 checkpoint	The checkpoint is installed at important stations, e.g., inside of business premises or a building.
Software	Patrol software	Used to create patrol duty schedules and for analyzing and monitoring the data received from the patrol.
Receiving stations	DMR repeater RD628, RD968, RD988 or RD988 super version	The patrol software can be connected with Hytera DMR repeaters via IP to receive data from the patrol.
Receiving stations	Mobile radio MD788/MD788G	As an alternative to the DMR repeaters, the patrol software can be connected to a mobile radio MD788/MD788G with the help of a programming cable.
