Wide Coverage with Cellular Network
Built-in Bluetooth
Built-in Bluetooth supports wireless connection with BT audio accessories releasing your hands and improving the efficiency.
Built-In Wifi
Connection with WiFi networks to provide reliable communications, particularly indoors, whilst also saving on data cost.
Pre-installed App
Android apps pre-installed provides convenient PoC services. Hytera can also offer an open API for 3rd party development and customization.
Long Battery Life
The impressive battery capacity delivers a long working time, supported with Micro-USB charging to make it easy to charge anytime, anywhere.
Reliable And Durable

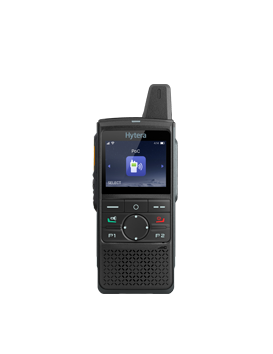

The PNC370 is compliant with MIL-STD-810 G and IP54, delivering a long-lasting solution, even in challenging environments.
General | ||
LTE |
FDD LTE: B1/3/5/7/8
|
|
WCDMA
|
B1
|
|
WLAN
|
2.4GHz, 802.11 b/g/n
|
|
Bluetooth
|
BT 4.1
|
|
Positioning System
|
GPS/BDS/GLONASS
|
|
Dimensions (H x W x D)
|
121mm x 55.5mm x 24mm
|
|
Weight (with battery)
|
185g (with battery)
|
|
Operating System
|
Android 5.1
|
|
Processor
|
MSM8909, Quad-core, 1.1GHz
|
|
Memory
|
RAM: 512M ROM: 4GB
|
|
SIM Card
|
Micro SIM (12x15mm)
|
|
Display
|
2.0'' 320×240 TFT/Non-touch
|
|
Port |
Micro USB 2.0 2.5mm Audio Jack Dock Charger interface |
|
Operating Voltage |
3.6V (Rated) |
|
Battery |
3100mAh (Li-ion) |
|
Battery Life | ≥18h (5-5-90 working cycle) | |
Environmental
|
||
Dust and Water Proof
|
IP55 Standard
|
|
Shock & Vibration
|
MIL-STD-810 G Standard
|
|
Drop Resistance
|
1.2m
|
|
ESD
|
IEC 61000-4-2 ±8 kV (Contact) ±12 kV (Air)
|
|
Operation Temperature
|
-20°C ~ +60°C
|
|
Storage Temperature
|
-30°C ~ +70°C
|
