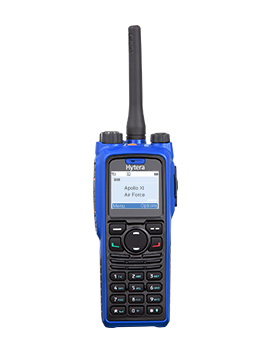

PD798 Ex
Patented Battery Latch
Environmentally Safe and High Reliability
Innovative Electrostatic Free Design
Innovative Silicone Encapsulating
Improved PCB Circuit Layout & EMC Shielding
High Audio Quality and Assured Communication
Hytera applies patent on electrostatic free design and dual-material molding technology in this intrinsically safe portable. The static dispersive material (blue) minimizes static accumulation on the surface, thus reducing the probability of static discharge on the radio. Meanwhile the robust material (black) maximizes the ruggedness of the enclosure.
IP67 (non-explosion-proof)
The Ingress Protection reaches IP67 (6: Totally protected against dust; 7: Protected against the effects of immersion up to 1m for 30 minutes). It's the highest IP level for land-based wireless radio application.
Patented Battery Latch
To disengage the battery from Hytera digital portables, the lock and bolt of the latch need to be moved along two different axes. Such a patented design ensures no disengagement of the battery pack from the main radio in case of dropping that might cause spark.
Certification
ATEX is the European Union directive to which all two-way radios must conform if used in potentially explosive environments. It replaces the Cenelec classification in all European Union member states and EFTA countries.
IECEx Scheme is the future route to global compliance certification. Its aim is to harmonize standards to allow free movement of goods by establishing a world-wide accepted standard.
FM (FM Approvals LLC) is a member of Nationally Recognized Testing Laboratories
|
General
|
||
|
Frequency Range
|
UHF1: 400-470MHz, VHF: 136-174MHz
|
|
|
Channel Capacity
|
1024
|
|
|
Zone Capacity
|
64
(each with a maximum of 16 channels)
|
|
|
Channel Spacing
|
25/20/12.5KHz
|
|
|
Operating Voltage
|
7.4V (rated)
|
|
|
Battery
|
1800mAh (Li-Ion)
|
|
|
Battery Life
(5-5-90 Duty Cycle, High TX Power)
High-capacity 2000mAh Li-Ion Battery
|
Analog: 14.5h/13h(GPS)
Digital: 17h /15h(GPS)
|
|
|
Frequency Stability
|
±1.5ppm
|
|
|
Antenna Impedance
|
50Ω
|
|
|
Dimensions (H×W×D)
(with standard battery, without antenna)
|
141X 55 X 39mm
|
|
|
Weight (with antenna & standard battery)
|
495g
|
|
|
LCD display
|
160*128 pixels, 65536 color, 1.8-inch
|
|
| Anti-explosion levels: ATEX |
II 2G Ex ib IIC T4 |
|
| Anti-explosion levels: IECEx |
Ex ib IIC T4 |
|
| Anti-explosion levels: FM/CSA |
Class I, Zone 1 AEx/Ex ib IIC T4 Gb |
|
|
Transmitter
|
||
|
RF Power Output
|
1W
|
|
|
FM Modulation
|
11K0F3E @ 12.5KHz
14K0F3E @ 20KHz
16K0F3E @ 25KHz
|
|
|
4FSK Digital Modulation
|
12.5KHz data only：7K60FXD
12.5KHz data & voice：7K60FXW
|
|
|
Conducted/Radiated Emission
|
-36dBm<1GHz
-30dBm>1GHz
|
|
|
Modulation Limiting
|
±2.5KHz @ 12.5KHz
±4.0KHz @ 20KHz
±5.0KHz @ 25KHz
|
|
|
FM Noise
|
40dB @ 12.5KHz
43dB @ 20KHz
45dB @ 25KHz
|
|
|
Adjacent Channel Power
|
60dB @ 12.5KHz
70dB @ 20/25KHz
|
|
|
Audio Response
|
+1 ~ -3dB
|
|
|
Audio Distortion
|
≤3%
|
|
|
Digital Vocoder Type
|
AMBE++ or SELP
|
|
|
Digital Protocol
|
ETSI-TS102 361-1, 2&3
|
|
|
Receiver
|
||
|
Sensitivity
|
Analog
|
0.3μV (12dB SINAD)
0.22μV (typical) (12dB SINAD)
0.4μV (20dB SINAD)
|
|
Digital
|
0.3μV /BER5%
|
|
|
Selectivity
TIA-603
ETSI
|
60dB @ 12.5KHz/70dB @ 20&25KHz
60dB @ 12.5KHz/70dB @ 20&25KHz
|
|
|
Intermodulation
TIA-603
ETSI
|
70dB @ 12.5/20/25KHz
65dB @ 12.5/20/25KHz
|
|
|
Spurious Response Rejection
TIA-603
ETSI
|
70dB @ 12.5/20/25KHz
70dB @ 12.5/20/25KHz
|
|
|
S/N
|
40dB @ 12.5KHz
43dB @ 20KHz
45dB @ 25KHz
|
|
|
Rated Audio Power Output
|
0.5W
|
|
|
Rated Audio Distortion
|
≤3%
|
|
|
Audio Response
|
+1 ~ -3dB
|
|
|
Conducted Spurious Emission
|
< -57dBm
|
|
|
Environmental Specifications
|
||
|
ESD
|
IEC 61000-4-2 (level 4)
±8kV (contact)
±15kV (air)
|
|
|
American Military Standard
|
MIL-STD-810 C/D/E/F/G
|
|
|
American Military Standard
|
IP67Standard
|
|
|
Humidity
|
MIL-STD-810 C/D/E/F/G
|
|
|
Shock & Vibration
|
MIL-STD-810 C/D/E/F/G
|
|
|
GPS#
|
||
|
TTFF (Time To First Fix) Cold Start
|
<1 minute
|
|
|
TTFF (Time To First Fix) Hot Start
|
<10 seconds
|
|
|
Horizontal Accuracy
|
<10 meters
|
|
#Accurate long-term track (95% value>trackable for 5 satellites in rated-130dBm signal strength).
All Specifications are tested according to applicable standards, and subject to change without notice due to continuous development.
