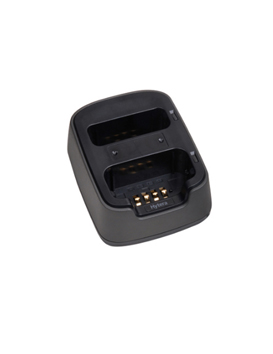

CH10A04

Functions:
It adopts MCU programmable control approach to charge the battery rapidly. Then MCU can automatically determine the appropriate algorithm to charge different batteries.In process of charging Ni-MH and Ni-Cd batteries，their voltage and temperature are monitored. it is possible to control charging by setting voltage detection, the maximum charge time, battery temperature, - △ V, 0 △ V , for fully charging the battery with good protection.  In process of charging Li-Ion battery, And it is possible to control charging by the minimum current, voltage detection and the maximum charging time detection for fully charging the battery with good protection.

Type of rechargeable battery: Li-Ion/Li-polymer/Ni-MH/Ni-Cd battery;

Charging mode:
Ni-MH/Ni-Cd battery: recondition,pre-charge,constant current,trickle charge;
Li-Ion battery: recondition,pre-charge,constant current/voltage;


Input:12VDC  1A;

Charging Current: 850mAh;

Operating Temperature: 0~40℃;

Compatible Radios:PD70X,PD70XG,PD780X,PD78XG,PT580H
