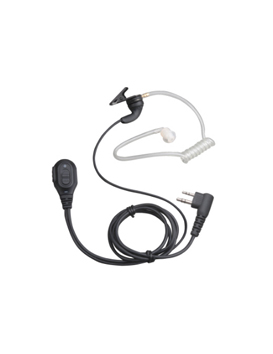

EAM08

Highlights:
1) PTT-on-MIC design.
2) Transparent tube for secret communication.
3) Detachable parts for easy replacement.
4) Volume adjustment capability.


Speaker Specifications:
Sensitivity: 112±3dB(Single part)
Rated Power: 10mW   Max. Power: 30mW
Distortion (typical): ＜5％ @ 1KHz
Speaker Impedance: 32Ω±15% @ 1KHZ

Microphone Specifications:
Sensitivity: -42±dB@1kHz 3.0V 2.2KΩ, 0dB=1V/pa

Operating Temperature: -20℃~60℃

Application: for users engaged in public security.

Compatible Radios:TC-500,TC-600, TC2108, TC2110
