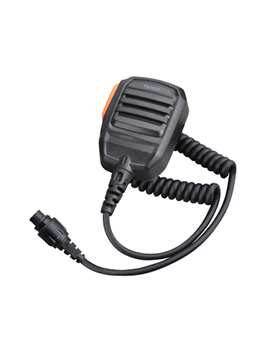

SM16A1

Highlights:
New design; electret microphone; 10-pin aviation connector

Microphone Specifications:
Sensitivity: -26±3dB @ 1KHz（0dB＝1v/Pa）;
Direction: omni-directional;
Distortion: ＜1％ @ 1KHz;
S/N: ≥50dB;

Dimensions: 82*56*32.2(mm);

Weight: about 120g;

Operating Temperature: -30℃~65℃

Compatible Radios: MT680,MD780,MD880T
