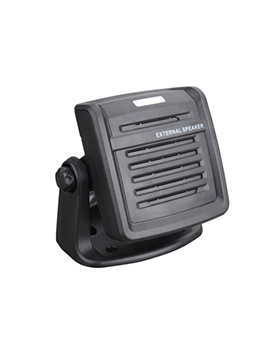

SM09S2

Highlights:
1.Being mountable on a horizontal or vertical surface.
2.The fixing bracket is adjustable.
3.The large speaker with high output power provides clear audio even under noisy environment.
4.Φ3.5mm pin audio plug.

Speaker Specifications:
Rated Impedance: 8Ω±15% （@ 500Hz 1V);
Sound Pressure Level: 88±2db (1w/1m)（@600/700/800/900Hz AVE）;
Rated Power: 15W   Max. Power: 20W;
Dimensions: 155.6*92.5*140.2(mm);
Weight: about 774g;

Operating Temperature: -30℃~65℃

Application: for broadcasting.

Compatible Radios:TM-800, TM-800M, TM-600, TM-610，TM-628H.
