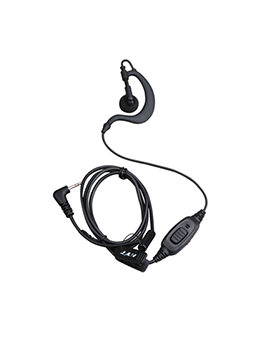

Common Earpiece

EHS12

Highlights:
1) Featured with a plastic clip.
2) PTT-in-line design.
3) Comfortable to wear with C-style earset.
4) Economical and practical.
5) PTT/VOX switchable(Model:EHS09)


Speaker Specifications:
Sound Pressure Level: 110±3dB(Single part) ;
Rated Power: 10mW   Max. Power: 30mW;
Distortion (typical): <5% @ 1KHz;
Speaker Impedance: 32Ω±15% @1KHZ


Microphone Specifications:
Sensitivity:
-40±3dB@1kHz 3.0V 2.2KΩ, 0dB=1V/pa;

Operating Temperature: -20℃~60℃

Application: for users engaged in retailing, entertainment, hospitality and food service industries.
